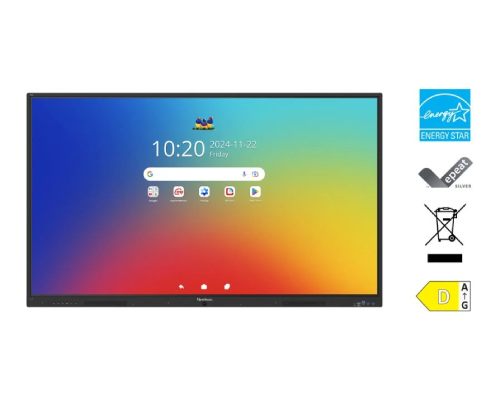

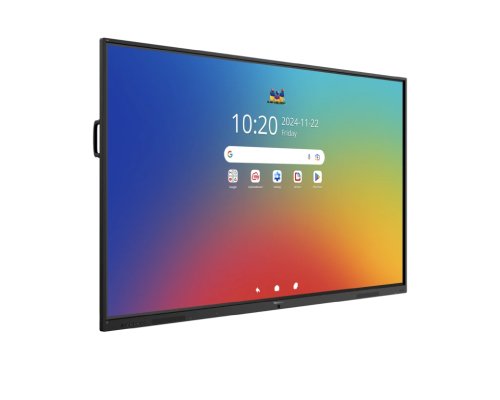

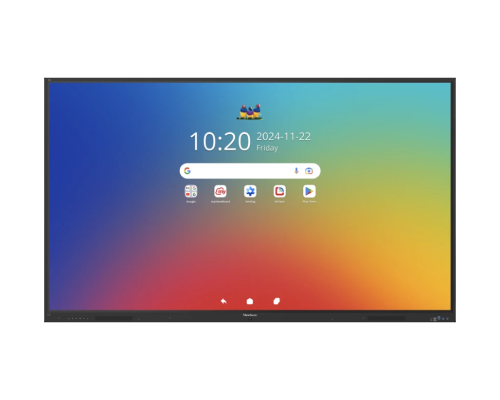

ViewSonic IFP8635-1-1C - 86''

Designed for next-generation learning, the ViewBoard IFP8635-1-1C features a 86” 4K display with Android 16 and EDLA certification for secure Google access. With octa-core performance, 64-point touch, and built-in education software, it delivers an immersive, efficient classroom experience.

Download Brochure

Request this item

Available screen sizes

65''

75''

86''

Specifications

Display:

Panel Size: 86"
Panel Type: TFT LCD Module with DLED Backlight.
Display Area (mm): 1895.04mm(H) x 1065.96mm (V)(85.6" diagonal)
Aspect Ratio: 16:9
Resolution: UHD 3840 x 2160
Colors: 1.07B colors (8bit+FRC)
Brightness: 350 nits (typ.)
Contrast Ratio: 5000:1 (max. with DCR enabled)
Response Time: 6.5ms
Viewing Angles: H = 178°, V = 178° typ.
Backlight Life: 50,000 Hours
Surface Treatment: Hardness: 9H, Anti-glare coating
Orientation: Landscape

Platform:

Processor: Octa-Core CPU
RAM: 8GB
Storage: 128GB

Touch:

Type/ Tech: Ultra Fine Touch Technology (IR Recognition)
Touch Resolution: 32767 × 32767
Touch Point: Up to 64 points of touch
Palm Rejection: Yes

INPUT:

HDMI: x3 (Frontx1: HDMI 2.1 4K@60Hz with CEC ; Rearx2: [(HDMI2.1 4K@60Hz with CEC, ARC)x1+(HDMI2.1 4K@60Hz with CEC)x1]
RGB / VGA: x1
DisplayPort: x1
Audio: x1
RS232: x1
SD/SDHC: x1 TF Card Slot (Micro SD)
OPS: x1 PC Slot

OUTPUT:

HDMI: x1 (HDMI 2.1 4K@60Hz)
Audio: x1 (Line out)
SPDIF: x1 (Optical)

LAN:

RJ45: x2

USB:

Type A: x5 (Front x2 and Rear x2 with USB3.2 Gen 1, all support SmartPort USB ; Rear x1 with USB 2.0 for system update)
Type B: x2 (Front x1 and Rear x1 with USB 3.2 Gen 1 connectors, Touch 1 with 3.2 data and Touch 2 with 2.0 data)
Type C: x2 (Front x1 with USB 3.2 Gen 1, DP1.2, Ethernet 100M, PD 65W; Rearx1 with USB 3.2 Gen 1, DP 1.2, Ethernet 100M, PD 15W)

Speakers:

20W x 2 Front soundbar

Embedded OS:

EDLA-Certified with Android 16

Bundled Software:

Basic Annotation Software: myViewBoard for Android
Pro Annotation Software: myViewBoard for Windows (embedded in VPC)
Wireless Presentation: AirSync
Device Management: Manager
ViewSonic Launcher: Yes

Special Features:

All-in-one USB port: USB 3.2 Gen 1 “SmartPort USB” to all channels
Simple LAN sharing between IFP and slot-in device: 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000)
Light Sensor: Yes
PIR Sensor: Yes

Power:

Voltage: 100-240VAC +/- 10% Wide Range
Consumption: On: 93.99 W ; Ｏff:< 0.5 W

Ergonomics:

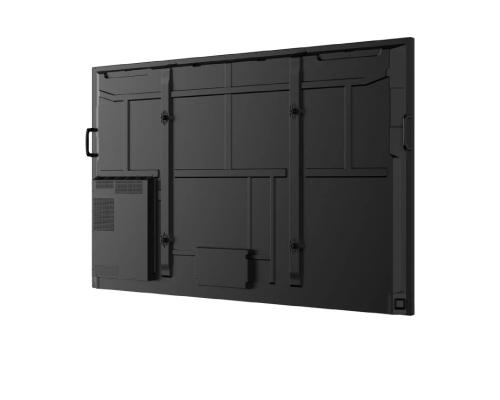

Wall Mount (VESA® ): 800 x 600

Operating Conditions:

Temperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH Non-Condensing

Dimensions:

Physical (inch / mm): 77.04 x 45.65 x 3.87 in / 1956.7 x 1159.6 x 98.3 mm
Packaging (inch / mm): 82.68 x 50.63 x 6.93 in / 2100 x 1286 x 176 mm

Weight:

Net (lb / kg): 109.57 lb / 49.7 kg
Gross (lb / kg): 137.35 lb / 62.3 kg

Regulations:

cTUVus, EPEAT Silver, BSMI, TGM, LBL, FF, REACH , WEEE, FCC_ICES003, ES8.0, CE_EMC, CB, EAC, UKr,ErP-EEL

Energy Star version:

EEI rating:

Package Contents:

1. Power Cord x1 3 meters,
by shipping area (VSA: US / VSE: UK, EU / VSI: UK, AU / VSCN: CN)
2. USB Touch cable x1 3 meters
3. Touch pen (Passive pen) x2
4. Quick Start Guide (With Compliance statement )
5. Screw x4 (for wall mount)
6. HDMI cable x1 3 meters,
(HDMI LA certified)
7. Remote controller x1
8. AAA battery x2
9. Warranty card (only for VSCN)

Compatible Slot-in PC:

VPCF5-W33-G1
VPC37-W53-G1
VPC35-W53-G1
VPC-A31-O1
VPC11-C33-G1
VPC13-C33-G1
VPC15-C53-G1

Fast Performance

Keep lessons running smoothly with an octa-core processor and 8GB RAM. EDLA-certified Android 16 ensures fast, secure performance for a seamless teaching experience.

Advanced Security

Protect data with EDLA-certified security, including automatic updates, encryption, and multi-layer authentication—keeping access secure and controlled.

Google Play Access

Use familiar apps like Docs, Sheets, and Slides with seamless integration. Edit, store, and present content directly from Drive, with full cross-device compatibility.

Personalised Access

Support multiple users with individual profiles, customised settings, and secure logins. A guest mode provides temporary access without compromising data privacy.

Smarter Performance for Modern Classrooms

Experience smooth, reliable performance with the ViewBoard® IFP35-1 Series, available in 65", 75", and 86". Powered by an octa-core CPU with 128GB storage and EDLA-certified Android 16, it offers secure access to Google apps. Built-in education software, wireless casting, and smart sensors support interactive teaching while improving efficiency and energy use.

Precision Writing

Experience accurate, fluid input with advanced 64-point touch technology.

Palm rejection prevents unintended marks, while 4-tier recognition distinguishes between pens, fingers, and eraser inputs, ensuring every stroke feels natural and responsive.

Wireless Casting

Share content effortlessly with AirSync.

Cast from up to four devices at once and manage what’s displayed with Moderation Mode. Touchback Control lets teachers move freely and interact from anywhere in the room.

USB-C Connectivity

Simplify setup with dual USB-C ports, delivering up to 65W power.

Handle video, data, touch, and network through a single cable, reducing clutter and speeding up classroom integration.

Immersive Audio

Dual 20W speakers provide clear, consistent sound across the classroom—no external equipment needed.

From voice to multimedia, content stays easy to hear while keeping setup simple.
