General

• Type: Desktop - Colour
• Paper Size: Max. SRA3, min. A6*
• Paper capacity Standard: 650 sheets (550-sheet tray and 100-sheet bypass tray)
• Paper capacity Max: 6,300 sheets
• Paper Weight: 55-300gsm
• Warm up time: 18s.
• Memory Standard: 5 GB (copy/print shared) + 128 GB SSD*, Opt.: 512 GB
• Control panel: 10.1-inch colour LCD touchscreen
• Machine weight: 84 kg (approx.)
• Dimension(W x D x H) mm: 609 x 662 x 860 mm
• Power: 50/60 Hz
• Power Consumption: Max. 1.84 kW (220 V to 240 V)

Copier

• Paper Size: Max. SRA3
• First Copy Time: Colour 7.6 sec, B/W: 6.5 sec
• Resolution Scan: 600 x 600 dpi
• Copy Continuous Max: 9,999 copies
• Zoom: 25% to 400% (25% to 200% using RSPF) in 1% increments

Printer

• Speed: A4*: Max. 26 ppm, A3: Max. 15 ppm, SRA3: Max. 14 ppm
• Interface: USB 2.0 (host, high-speed), USB 3.0 (host, super speed), 10Base-T/100Base-TX/1000Base-T, wireless LAN (IEEE 802.11 a/b/g/n/ac)*
• Resolution: 1,200 x 1,200 dpi, 600 x 600 dpi, 9,600 (equivalent) x 600 dpi
• Network Protocol: TCP/IP
• Print Protocols: LPR, Raw TCP (port 9100), POP3 (email printing), HTTP, FTP for downloading print files, IPP, SMB,WSD
• OS Supported: Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022, Windows 8.1, Windows 10, Windows 11, Mac OS 10.10, 10.11, 10.12, 10.13, 10.14, 10.15, 11, 12, 13, 14
• Fonts: 80 fonts for PCL, 139 fonts for Adobe PostScript 3

Scanner

• Scan Method: Push scan (via control panel), pull scan (TWAIN-compliant application)
• Scan Speed: 1 side: Max. 120 originals/min. 2 sides: 240 originals/min.
• Resolution: Push scan: 100, 150, 200, 300, 400, 600 dpi; Pull scan: 75, 100, 150, 200, 300, 400, 600 dpi50 dpi to 9,600 dpi via user setting*
• Format: TIFF, PDF, PDF/A-1a*, PDF/A-1b, encrypted PDF, XPS, compact PDF*, JPEG*, searchable PDF*, OOXML (pptx, xlsx, docx)*, text (TXT [UTF-8])*, rich text (RTF)*
• Destination: Email/desktop*15/FTP server/network folder (SMB)/USB drive/local drive

^{*View the brochure for more information}

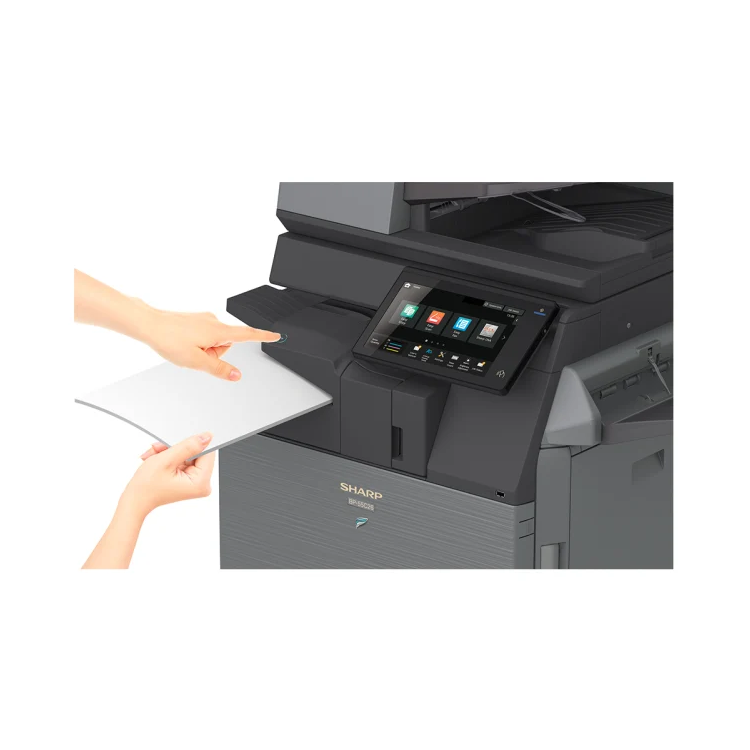

• 10.1" Full-Flat Touchscreen: The MFD offers smooth operation with easy-to-use icons and a fully customisable home screen. The control panel tilts for added convenience.

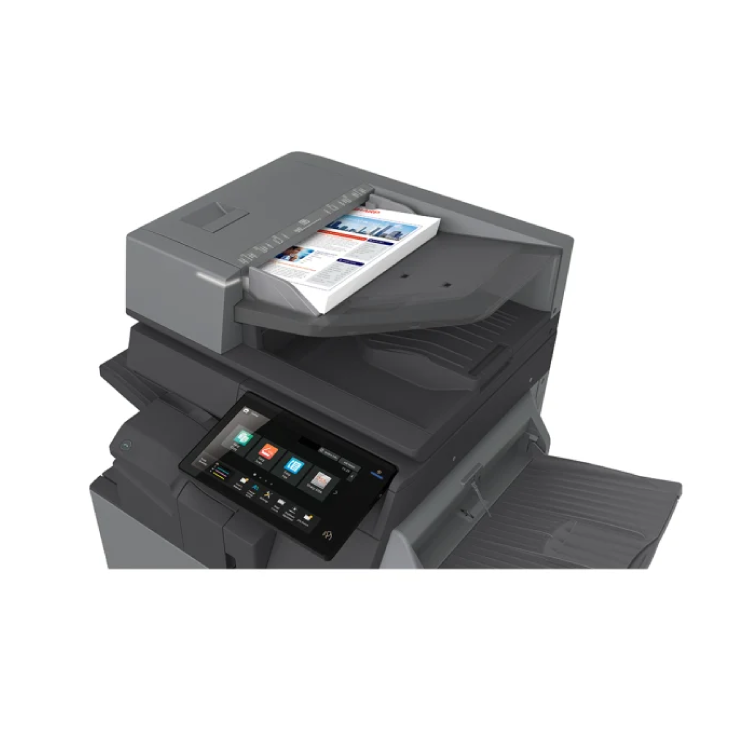

• Duplex Single Pass Feeder: With scan speeds up to 240 opm (2-sided), this MFD handles large colour or B/W jobs efficiently using its 300-sheet DSPF.
  ‍
• Print & Share Documents Easily: Collaborate remotely with Cloud Connect, giving access to services like Microsoft Teams and Google Drive. Admins can manage apps easily via the Sharp Application Portal.
  ‍
• Folding Unit: The optional BPFD10 unit enables Z-fold, C-fold, and more for efficient mail production. Paired with the BPFN16 finisher, it can also staple Z-folded pages.
  ‍
• Link with Mobile Devices: Sharp MFDs connect easily to mobile devices, allowing you to scan to or print from your phone. Use Sharpdesk Mobile via NFC or QR code for quick pairing.
  ‍
• One-Touch Job Recall: Quickly recall the last 10 jobs—copy, fax, scan—adjust settings, and repeat them directly from the LCD screen.
  ‍
• Multi-Crop & Image Crop Functions: Scan multiple items at once, each saved as a separate file. It also crops and saves images from documents like magazines.

^{*View the brochure for more information}
