General

• Type: Desktop - Colour
• Paper Size: Max A3W, Min A6
• Paper capacity Standard: 350 Sheets ( tray 250 sheets + Multi bypass tray 100)
• Paper capacity Max: 1,850 sheets
• Paper Weight: 55-256gsm
• Warm-up time: 27 sec.
• Memory Standard: 2 GB, 16GB eMMC
• Control panel: 7-inch colour LCD touchscreen
• Machine weight: 52Kg (approx.)
• Dimension(W x D x H) mm: 560 x 581 x 653mm
• Power: 50/60 Hz
• Power Consumption: 1.84 kW

Copier

• Paper Size: Max A3
• First Copy Time: Coulor 11.5 sec. B/W: 8.0 sec.
• Resolution: Scan 600 x 600dpi, 600 x 400dpi
• Copy Continuous: Max: 999 copies
• Zoom: 25%-400%

Printer

• Speed: A4 Max. 20 ppm, A3 Max. 12 ppm
• Interface: USB2.0, 10Base-T / 100Base-TX / 1000BaseT, wireless LAN (IEEE 802.11 a/ac/b/g/n)
• Resolution: 600 x 600 dpi
• Network Protocol: TCP/IP
• PDL: PCL 6 emulation, Option Adobe PostScript 3 emulation
• OS Supported: Windows Server 2016, Windows Server 2019, Windows Server 2022, Windows 10, 11. Mac OS 10.10, 10.11, 10.12, 10.13, 10.14, 10.15, 11, 12, 13, 14, 15
• Fonts: 80 fonts for PCL, 136 fonts for Adobe PostScript 3 emulation

Scanner

• Scan Method: Push & Pull
• Scan Speed: 31 opm (colour - B/W)
• Resolution: Push scan: 100, 150, 200, 300, 400, 600 dpi; Pull scan: 75, 100, 150, 200, 300, 400, 600 dpi
• Format: TIFF, PDF, JPEG
• Destination: E-mail, Desktop, FTP server, Network folder (SMB), USB Drive

^{*View the brochure for more information}

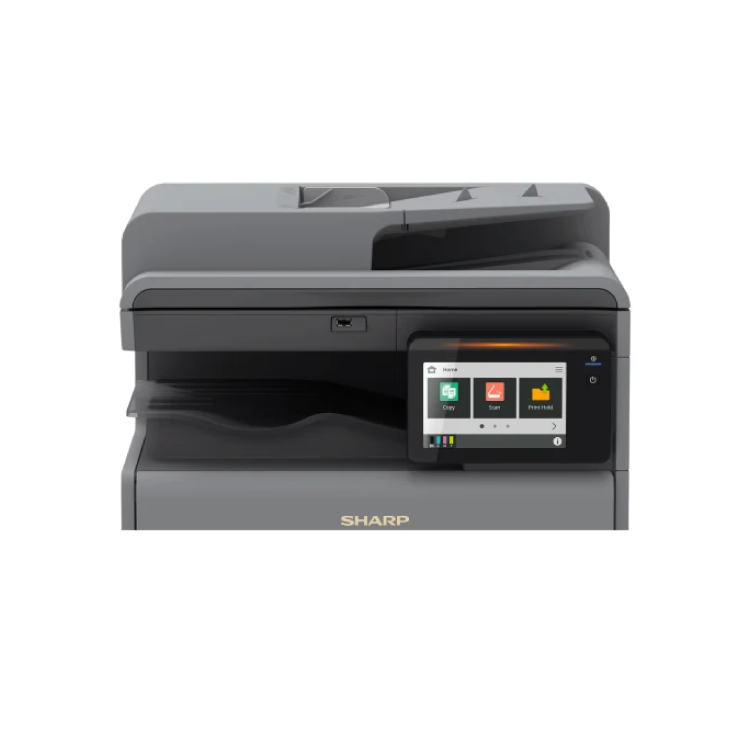

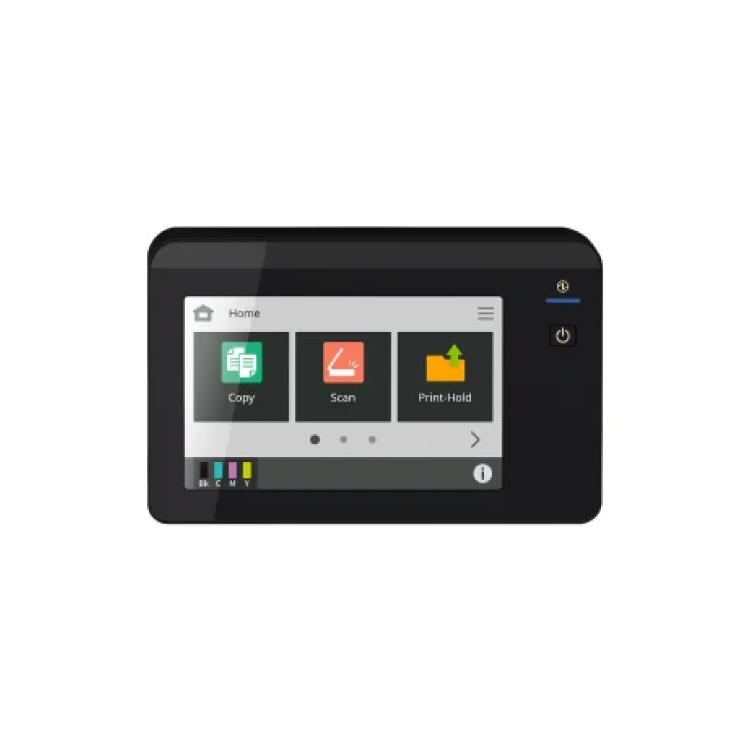

• 7-Inch Colour LCD Touchscreen: Operating the BP22C20 is easy and intuitive with the 7.0-inch colour LCD touchscreen. The control panel can also be tilted freely at various angles.
  ‍
• Automatic Document Feeding: The standard RSPF (reversing single pass feeder) efficiently feeds in either one- or two-sided originals—in batches of up to 100 sheets. With a scanning speed of up to 31 opm* (one-sided) for both colour and B/W documents, the BP22C20 can complete large jobs with ease and efficiency.
  ‍
• USB Drive Direct Printing/Scanning*: Insert a USB drive into the BP22C20 and a command screen will automatically pop up on the LCD. Right away you can print files from, or scan documents directly to the USB drive (Optional BPPK10L is required for direct printing PDF files).
  ‍
• Wireless LAN Connection (Option): The optional wireless connectivity enables easy access from mobile devices and flexible MFP placement. The BP22C20 also supports Wi-Fi Direct® and Wi-Fi Protected Setup™.
  ‍
• Link with Mobile Devices: Mobile devices installed with the Sharpdesk Mobile app can connect directly to the BP22C20 for printing or downloading scanned data. The MFP can also be equipped with AirPrint and the Sharp Print Service Plugin (Android).
  ‍
• Solid Security: A range of security features help to keep your information safe, whether it’s on the BP22C20 or over your network. These include data encryption/erasure, TLS 1.3 support, and user authentication via IC cards.

^{*View the brochure for more information}
