ViewSonic LDS138-151

Experience a 138” all-in-one LED display built for convenience and impact. Foldable for easy transport, pre-assembled for immediate use, and protected with GOB technology, it delivers stunning visuals with effortless setup.

Download Brochure
Request this item

Specifications

Display:

  • Screen Size: 138"
  • Display Area (mm): 3050 (H) x 1715 (V)
  • Native Resolution: 1920x1080
  • Panel Technology: Direct view LED
  • LED Package Type: SMD 3 in 1 (GOB)
  • Bonding Wire: Copper
  • Pixel Pitch (mm): 1.588
  • Brightness (max.): 600 nits (100 levels adjustable)
  • Contrast Ratio (typ.): 6500:1
  • Color Temperature: 3000K -10000K
  • Orientation: Landscape
  • Viewing Angles (typ.): H = 170, V = 170
  • LED Lifetime (typ.): 100,000 Hours
  • Local Storage: Total 32GB
  • (26GB available storage)
  • Embedded OS: Android 9.0
  • Resolution Support: VGA(640 x 480) to 4K(3840 x 2160@60hz)
  • HDTV Compatibility: 480p, 576p, 720p, 1080p, 2160p
  • Horizontal Frequency: 31K-94kHz
  • Vertical Scan Rate: 56-85Hz

Input:

  • HDMI: 4
  • (HDMI 2.0/HDCP 2.2)
  • (internal x3, external x1)
  • USB Type A: 3
  • (USB3.0 x1, USB2.0 x2)
  • RJ45 Input: 3
  • (internet x2, control x1)
  • IR in (3.5mm): 1
  • Wi-Fi Input: 2.4G/5G Hz
  • USB Type C: 1
  • (data only)

Output:

  • HDMI out: 1
  • (HDMI 1.4/HDCP 1.4)
  • (internal x1)
  • Speaker: 30Wx2
  • Audio out (3.5mm): 2
  • S/PDIF: 1
  • USB Type A (Power): Shared with USB A input
  • (USB 3.0 5V/0.9A x1, USB 2.0 5V/0.5A x1, USB 2.0 5V/2A x1)
  • USB Type C (Power): Shared with USB Type C input
  • (5V/1A x1)

Control:

  • RJ45 (LAN control): 1(shared with internet)
  • USB Type A (Services): 1(shared with USB A input)
  • RS232 (DB 9-pin female): 1
  • IR Receiver: 1
  • Light Sensor: 1

Others:

  • Power Supply Voltage: 100-240V ~ 50/60Hz
  • (vary by country)
  • Power Consumption (W/unit): 581W (typ), 1745W (max)
  • < 0.5W (Hibernate)
  • Inrush Current:
  • 220V: 84A / 110V: 58A
  • Operating Temperature: 0~40℃
  • Total LED Module Quantity: 200
  • Ingress Protection Rating: IP54(Front)
  • Impact Protection Rating: IK06(Front)
  • Net Weight: 676.82 lbs
  • (307 kg)
  • Gross Weight: 1044.99 lbs
  • (474 kg)
  • Product Dimensions (WxHxD): 72.87x76.71x30.71 inches (min.)
  • (1850.81x1948.4x780 mm (min.))
  • 120.63x102.28x30.71 inches (max.)
  • (3064x2598x780 mm (max.))
  • Packing Dimensions (WxHxD) : 81.5x78.58x33.35 inches
  • (2070x1996x847 mm)

Standard Accessories:

  • Power Cord: 1
  • LAN Cable (Cat 5E): 1
  • IR Extender Cable: 1
  • Remote Control: 1
  • QSG: 1
  • Spare Parts: LED module x14
  • 3 in 1 hub board x3
  • Maintenance Tool: LD-MK-006 x1

Optional Accessories:

  • Maintenance Tool: LD-MK-006

Quick Setup, Easy Transport

Great Audiovisual Impression

User-Friendly Operation & Maintenance

Powerful Integrated Audio

Dual 30W speakers provide strong, clear sound, ensuring presentations are heard across large spaces without extra equipment.

Wireless Content Sharing

Share content easily with built-in Wi-Fi and the vCast app. Cast from one or multiple devices simultaneously for smooth, collaborative presentations.

Front Access Maintenance

Hot-swappable front LED modules make maintenance quick and simple. Replace components easily using the included suction tool, no need to move the display.

Transform Any Room with a 138” Seamless Display

The ViewSonic® LDS138-151 is a foldable 138” all-in-one LED display designed for instant use and easy transport. Pre-assembled with a motorised height-adjustable stand, it can be set up in minutes without wall mounting. Its GOB-protected, IP54-rated screen ensures durability, while the seamless display and dual 30W speakers deliver an impressive visual and audio experience for large spaces.

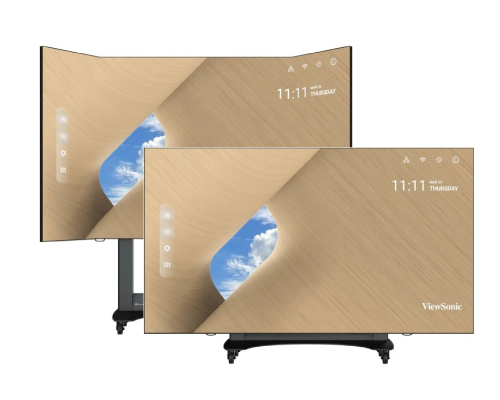

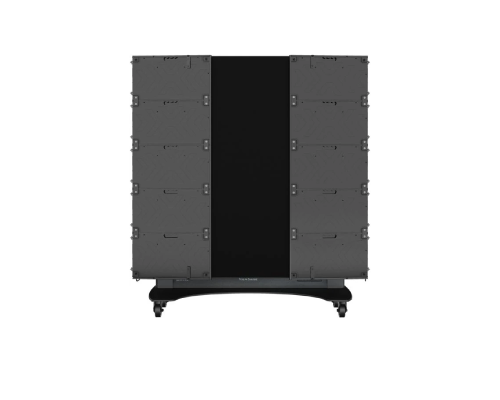

Foldable Design for Easy Mobility
The foldable screen fits into standard elevators, making transport between locations simple.

Its mobile design is ideal for spaces where permanent installation isn’t practical.

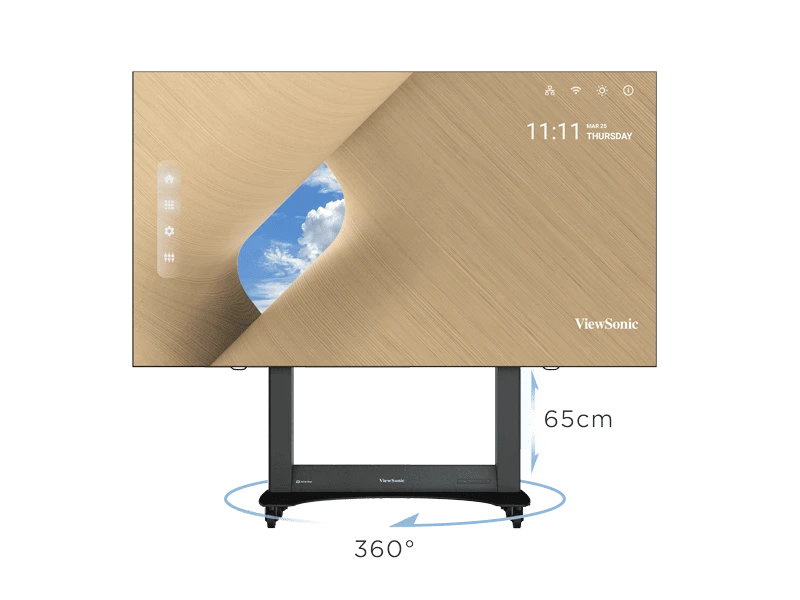

Motorised Stand with 360° Wheels
A built-in motorised stand offers up to 65 cm height adjustment at the push of a button.

Silent 360° wheels allow smooth movement and flexible positioning in any space.
Bright, Vivid Visuals
With 600 nits brightness and adjustable levels, the display delivers clear visuals even in well-lit spaces.

Cinema SuperColor+ technology ensures rich, lifelike colours.
All-in-One Simplicity
Forget complex setups.

No external systems or assembly required. Simply power on and start presenting.
